Precision handheld laser systems for labeling and marking -
engineered for demanding industrial applications.
20W Laser EVO-
Plugin 230V
Price on request
20W Laser EVO-
Li-Ion Battery
Price on request
30W Laser EVO-
Plugin 230V
Price on request
30W Laser EVO-
Li-Ion Battery
Price on request
Reliable Long-Term Operation
- Engineered with high-quality components to ensure consistent performance under demanding industrial conditions.
- Instant power-on capability enables immediate operation without warm-up time and ensures maintenance-free use with minimal operating costs.
Efficient Performance
- The mobile design allows flexible deployment across a wide range of applications, including construction sites and remote locations.
- Ideal for marking large components and machinery that cannot be processed in enclosed or fully automated systems.
User-Friendly Operation
- Intuitive smart touchscreen interface for seamless control.
Self-explanatory software architecture minimizes training requirements. - Multi-language support and one-button marking ensure fast and efficient workflows.
Advanced Engineering Design
- Lightweight yet durable housing made from high-density materials for maximum stability.
- High-transmittance quartz-coated field lens expands the marking area and enhances precision.
Application Areas
Marking Types
Marking Material
Easy Operation
- With the intelligent red light positioning the system allows accurate marking
- A simple on/off button is built into the handle
- At 9 kg (9.8 kg for the battery version), the mobile handheld laser is a real lightweight (2nd Generation)
Intelligent Touchscreen
Self-explanatory, simple operating software in various languages (English, German, French, Spanish and Italian).
Individual QR codes, bar codes and serial numbers, logos and graphics can be generated, saved and marked via the integrated touchpad or with the simple operating software. Logos or graphics can be easily transferred via a USB stick. You can save your data directly on the machine or on an external storage device such as a USB stick or PC.
Flexible Marking
Two marking field sizes to choose from: Standard 100 x 100mm and Optional 50 x 50mm

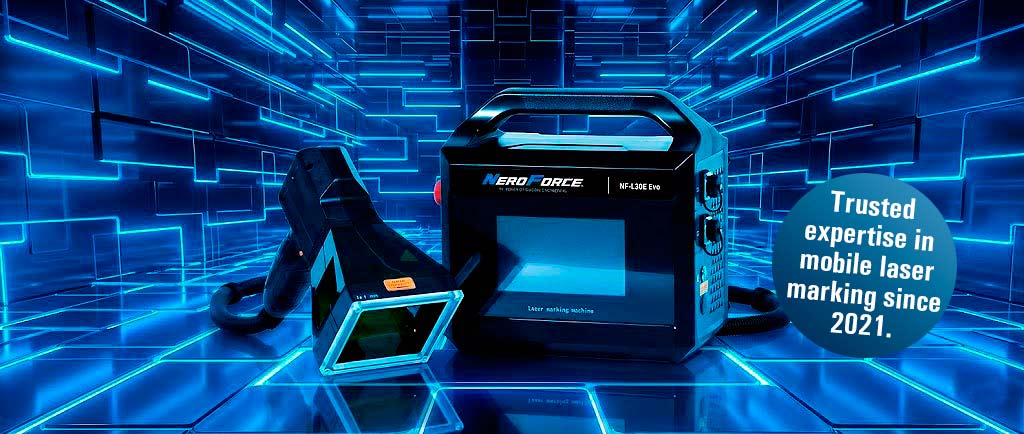

Handheld Fiber Laser EVO
Mobile Industrial Laser Marking System, 20W or 30W, Optional Battery Version
The Handheld Fiber Laser EVO is a compact and highly mobile laser marking system designed for demanding industrial applications. It enables permanent marking directly on components, machines and large parts that cannot be processed in enclosed or automated systems.
Ideal for workshops, production environments or on-site use, wherever flexibility and mobility are essential.
Model Variants Overview
20W, 230V Plug-in Version: Efficient solution for standard industrial marking
- 20 Watt laser power
- Powered via 230V mains connection
- Suitable for metals, plastics and coated materials
- Cost-effective solution for regular industrial use
20W, with Exchangeable 12Ah Li-Ion Battery: Maximum flexibility without power cables
- 20 Watt laser power
- Integrated, exchangeable battery
- Operating time approx. 5.5 hours
- Charging time approx. 4 hours, external charger included
- Fully independent from external power supply
- Note: Battery classified as hazardous goods for international shipping
Perfect for construction sites, large machinery or remote applications.
30W, 230V Plug-in Version: Higher performance for demanding marking tasks
- 30 Watt laser power
- Powered via 230V mains connection
- Faster marking speed
- Improved performance on harder or heavily coated materials
- Designed for intensive industrial use
30W, with Exchangeable 12Ah Li-Ion Battery: Maximum power combined with full mobility
- 30 Watt laser power
- Integrated, exchangeable battery
- Operating time approx. 5.5 hours
- Charging time approx. 4 hours
- Fully cable-free operation
- Hazardous goods classification for international shipping
The ideal choice for demanding marking applications where mobility is essential.
How to Choose
20W or 30W?
20W is ideal for standard marking tasks and general industrial materials such as steel, aluminium, plexiglass or carton
30W offers higher speed and greater performance reserves for tougher materials such as rubber, tyres or conveyor belts.
Plug-in or Battery Version?
Plug-in models are best for fixed workstations.
Battery versions provide complete independence and maximum flexibility for mobile use.
Features
3rd Generation, Enhanced Safety
- Mechanical trigger lock to prevent unintended activation
- Integrated distance sensor in the laser head, activation only when correctly positioned on the marking surface
Maximum Mobility
- Compact, ergonomic design
- Weight: approx. 9 kg, battery version approx. 9.8 kg
- Perfect for large components, construction sites and external applications
Industrial reliability
- Air-cooled system, no water cooling required
- Low maintenance and durable construction
- Laser lifetime approx. 100,000 operating hours
- 18 months warranty
- CE certified
User-Friendly Operation
- Intelligent touchscreen interface
- Linux-based system
- Intuitive and self-explanatory software
- Password protection against unauthorized access
- Multi-language support
- One-button marking
- Barcode and QR code scanner input supported
Technical Specifications
- Wavelength: 1064 nm pulsed fiber laser
- Internal memory: 2 GB
- Marking area: 100 × 100 mm or 50 × 50 mm
- Power supply: 230V, 110V in preparation
- Shipping dimensions: 60 × 40 × 38 cm
Applications
Within seconds, the system applies logos, graphics, QR codes, serial numbers, date codes and custom designs, supports file formats such as JPG and PNG.
Suitable for marking:
- Rubber products, tires, conveyor belts
- Metal, tools, hardware
- PVC, PU, plastics
- Coated surfaces
- Coated cartons
- Aluminum products, cases, frames and housings
We offer demonstrations and training/instruction courses for a fee. Prices depend on the amount of work involved, the number of people and travel costs.
Protective Gear and Spare Parts
Laser safety spectacle with filters adapted for NF Laser
Price on request
Click for more information
Sporty shield frame spectacles
Recommended for use with NEROFORCE 20 & 30W Laser Marking Devices. When used correctly, it ensures optimal and reliable protection.
This frame sets standards in fit and comfort. The flexible temples with multiple inclinations can be individually adjusted, and the integrated Softflex zone ensures excellent comfort and a secure fit even with different head widths. A soft adjustable nose pad ensures a pressure-free fit.
Technical Brief Description: Laser safety goggles are certified for the wavelength range of 180-11500nm according to EN 207 (full protection) with few interruptions, and are particularly distinguished by high protection levels in the IR range. It also has M-protection levels for ultra-short laser pulses and alignment protection according to EN 208 in the range of 640-700nm. It is delivered in a soft case along with a cord for hanging the goggles.
Highlights:
Coating: Scratch-resistant on both sides
Standards: EN207 Full protection, EN208 Alignment protection
Filter color: Blue
Filter thickness: 2mm
Filter material: Plastic
Filter technology: Absorption filter
Low weight with the best fit
Absorbent plastic filters specially tuned for NF Laser (20/30W)
Flexible temples with inclination
Very good all-around visibility
Soft nose pad
High wearing comfort
Packaging unit: Piece
Weight including packaging: 0.23 kg
Weight excluding packaging: 0.03 kg
Made in Germany
For cleaning and maintenance of the laser safety goggles, we recommend the cleaning station Art.No. UVA99.
Laservision Overglasses, suitable for eyeglass wearers
Price on request
Click for more information
Recommended for use with NEROFORCE 20 & 30W Laser Marking Devices. The used filter – when used correctly, ensures optimal and reliable protection.
This eyewear is designed as a highly functional over-glasses. The Clipnetic system allows for easy replacement of the nose pad with the RX insert or the Clipnetic cover as needed, making it possible for the glasses to be worn by different users and resulting in significant cost savings. The cold-formable temple ends ensure a comfortable and secure fit.
Technical Brief Description: This laser safety eyewear is classified as a combination filter for Nd:YAG, SHG, THG including pump diodes according to EN 207, and is distinguished by high M-protection levels at 1064nm, 532nm, and 355nm. The multifunctional eyewear with orange filters and the Clipnetic system can be worn as over-glasses over prescription glasses using the Clipnetic cover or as regular laser safety eyewear with a soft adjustable nose insert. Additionally, it can be equipped with an RX insert via magnet. The manufacturer also offers a glazing service for this purpose, eliminating the need to visit an optician. As a result, the glasses are overall very cost-effective, as they are well-suited for changing users within the application area. The package includes all Clipnetic features, which can be optionally reordered at any time.
Highlights:
- Standards: EN207 Full protection
- Filter Curve: Base curve 6
- Filter color:orange
- Filter thickness: 2mm
- Filter material: Plastic
- Filter technology: Absorption filter
- Low weight with the best fit
- Absorbent plastic filters specially tuned for NF Laser (20/30W)
- Flexible temples with inclination
- Very good all-around visibility
- Soft nose pad
- High wearing comfort
- Packaging unit: Piece
- Weight including packaging: 0.20 kg
- Weight excluding packaging: 0.05 kg
Cleaning Station for Laser safety spectacles
Price on request
Click for more information
Cleaning Station Model UVA99 with Accessories
The professional cleaning station is designed for wall mounting, making it suitable for any room. The package includes a cleaning fluid with a matching plastic dispenser, as well as wood-free cleaning wipes specifically designed for the characteristics of laser safety filters. The combination of these two products allows for gentle and thorough cleaning, ensuring a long lifespan for the glasses or laser safety filters.
Dimensions: W: 27cm x H: 26cm x D: 9cm
Packaging unit: 1 Piece
Weight including packaging: 0.20 kg
Weight excluding packaging: 0.05 kg
Warning sign with hazard symbol (in German)
Price on request
Click for more information
Warning sign with hazard symbol:
WARNING: LASER BEAM in accordance with ASR A1.3:2013, DIN EN ISO 7010
- Dimensions: 25 x 62 cm
- Foldable design
- Polypropylene plastic
- High-quality design with reflectors
- German-language version
Specially designed for use with mobile laser devices to secure the area of application against unwanted passers-by, access, etc.
Laser Mounting Stand, table version
Price on request
Click for more information
This solid table mounting stand has specially designed for our handheld lasers.
The stable and high quality stand allows a very precise marking of smaller items.
Features:
- 2 variable fixable plates
- continuous height adjustment
- When 100x100cover is used, max clearance will be 140mm
- stable Aluminium Version
- Dimensions: Base: 300x400mm; Total height: 480mm
Warning: We strongly recommend that this Laser shall only be operated by trained staff in a restricted and protected area, or a closed room.
Set of Lens & Covers
100x100mm
Price on request
Click for more information
Lens and Cover should regularly be renewed. This ensures performance and safety of the laser.
Contents as shown in the picture:
- Cover
- 4 pcs templates
- Lens with focus 100x100mm
- Screws
Set of Lens & Covers
50x50mm
Price on request
Click for more information
Lens and Cover should regularly be renewed. This ensures performance and safety of the laser.
Contents as shown in the picture:
- Cover
- 4 pcs templates
- Lens with focus 50x50mm
- Screws
Caps for 100x100mm
Cover
Price on request
Click for more information
These caps are made to close the openings on the 100x100mm cover.
Note:
Those Orange Covers only have the purpose to ensure the optimum distance (focal distance) between laser lens (output) and the surface to be marked. Also it prevents from reaching in-between this distance.
A protection like with protection glasses is not given.
LI-ION Battery for Laser unit with exchangable Battery
Price on request
Click for more information
Replacement battery for 2023 EVO models with battery
In the 2023 version of our hand-held lasers with battery, the battery can now be easily replaced via a slot.
This means that you can now charge the battery externally using a charger.
This means you can operate the laser with a second battery while one battery is being charged.
Technical data of the rechargeable Li-ion battery:
- Voltage: 21.6V
- Nominal capacity: 12.8Ah/276.48Wh
- Max. charging voltage: 25.2V
- Max. charging current: 6.7A
- Charging temperature: 0 – 45C
- Operating temperature: -20 to + 45C
- Charging time approx. 4h
- HAZARDOUS GOODS – International shipping may incur additional costs
Spare Battery for Handheld Laser Unit
Price on request
Click for more information
Battery Block – installed within the housing of the unit
Technical Specification:
- NCM/18650
- 22,2V
- 266.4Wh
- 12000mAh
- 1,4kg
Hazardous Goods – International Shipping may generate additional cost
Demo Video Clips
Please note: Data is transmitted to Google when you play the videos.
How to enter data via a barcode reader
Tyre marking
Logo on Aluminium
